I-7052/I-7052D/M7052/I-7053FG/M-7053FG

Isolated Digital Input Module

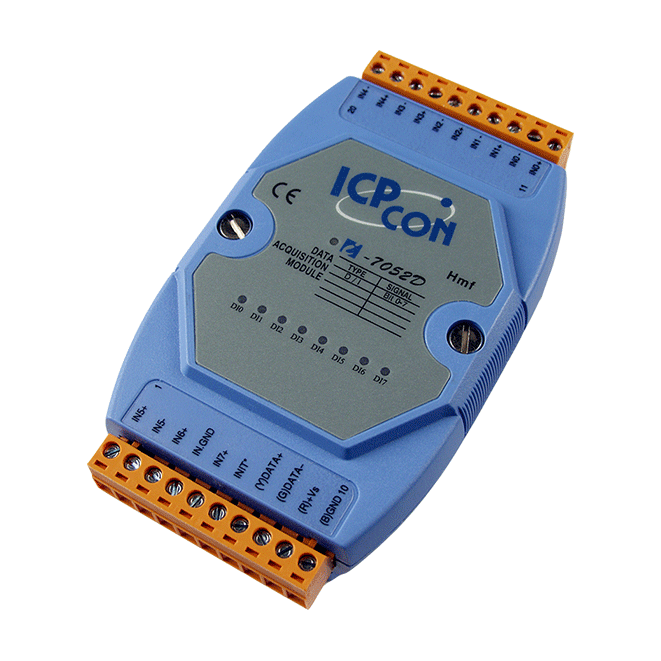

I-7052D : I-7052 with LED Display

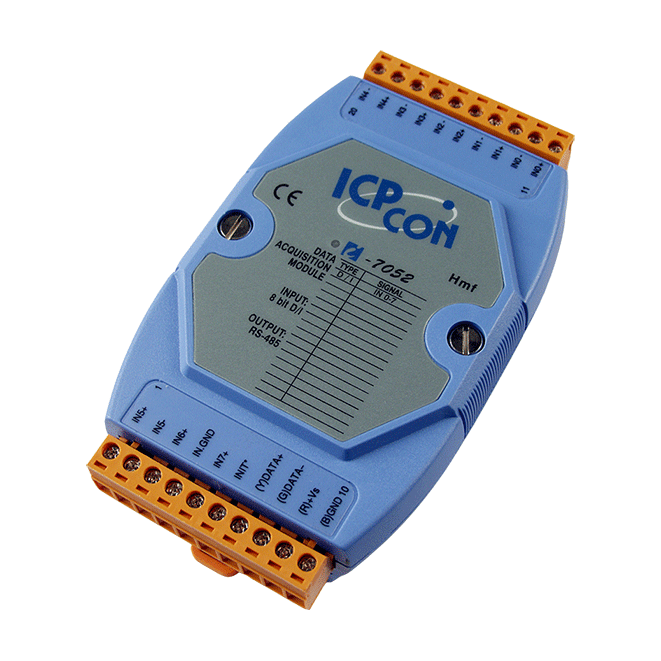

I-7052/I-7052D/M-7052

Digital Input

  • Channels: 8

    6 fully independent channels

    2 common ground channels

  • Digital input Level

    Logic level 0: +1V max.

    Logic level 1: +3V to +30V

  • D/I can be used at counter Channel: 8

    Input Frequency : 100Hz

    16-bit : 0~6,5535

  • Characteristics

    Isolation voltage: 5000Vrms

    Input impedance: 3KW , 0.5W

  • Power
    Power consumption: 0.4W

I-7053FG/M-7053FG

Digital Input

  • Channels: 16

    Nem szigetelt "forrás" típusú bemenetek

    Non isolated source type input

  •

  • Digital input Level

    Logic level 0: close to GND

    Logic level 1: open

  • D/I can be used at counter Channel: 16

    Input Frequency : 100Hz

    16-bit : 0~65.535

  • Power
    +10 ~ +30 VDC Power consumption: 0.7W

  • Protocol: I-7053: DCON
    M-7053:Modbus + DCON


Ordering Information

I-7052

Isolated digital input module

I-7052D

Isolated digital input module with display

M-7052

Isolated digital input module, MODBUS prot.

I-7053FG

16 ch Non Isolated digital input module

M-7053FG

16 ch Non Isolated digital input module, MODBUS prot.
