A képek az ICPDAS tulajdonát képezik. Picures are property of ICPDAS.
-
-
I-7017 család
• 7017: 8 csatornás differenciál bemenet/ 8-channel analog Input
• 7017F: 8 csatornás analog bemenet 60Hz mintavétel 8-channel Analog Input 60Hz sampling
• M-7017 8 csatornás analog bemenet Modbus RTU+DCON protokol / 8 ch Analog Input, Modbus+DCON protokol
• 16 bit csatornánkémti felbontás / 16 bit resolution
• 3kV szigetelés / 3000 VDC Intra-module Isolation
• Kettős watchdog / Dual Watchdog
• Széles működési hőfoktartomány
Wide Operating Temperature Range: -25 to +75°C
Tulajdonságok / Features
|

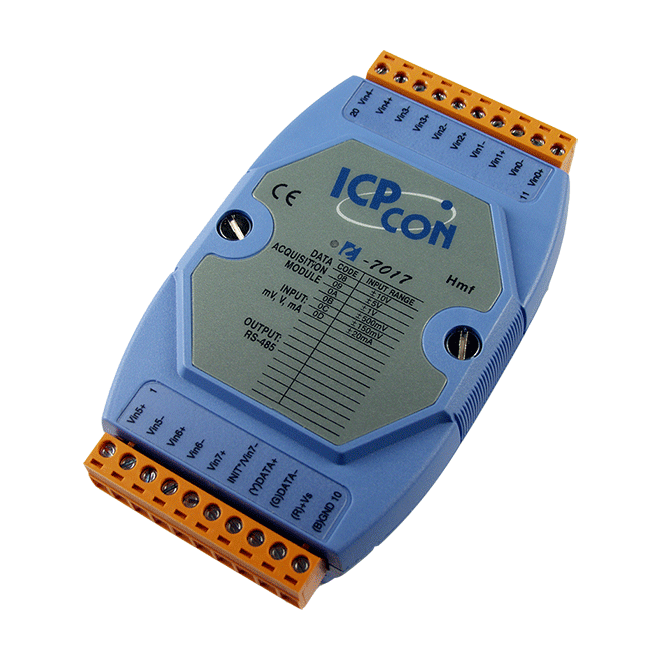

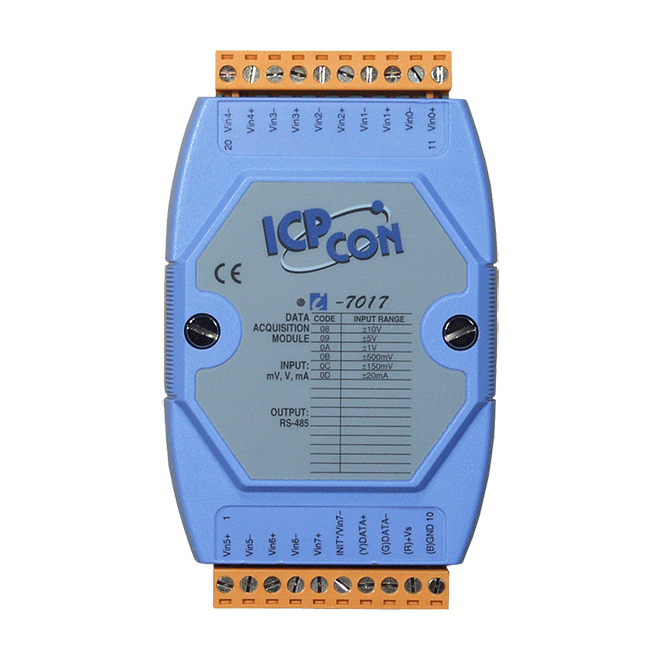

I-7017
8 ch Volt/mA Input Module/ 10Hz sampling |

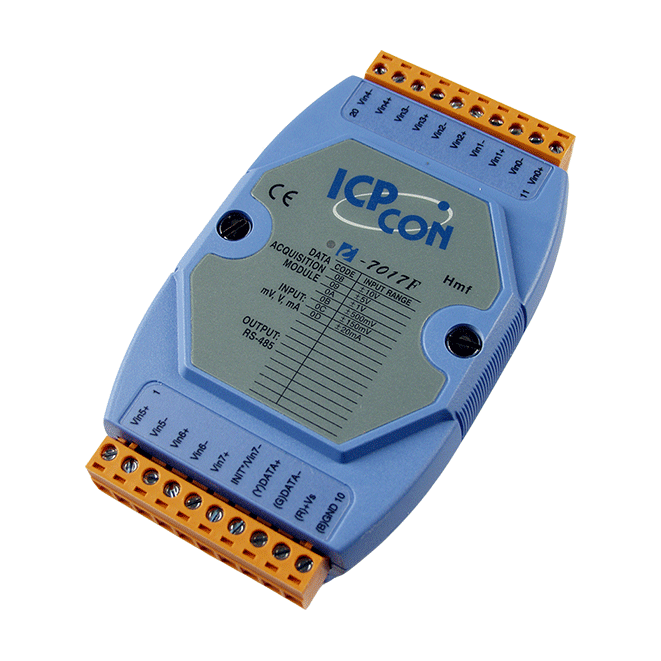

I-7017F
8 ch Volt/mA Input Module/60Hz sampling |

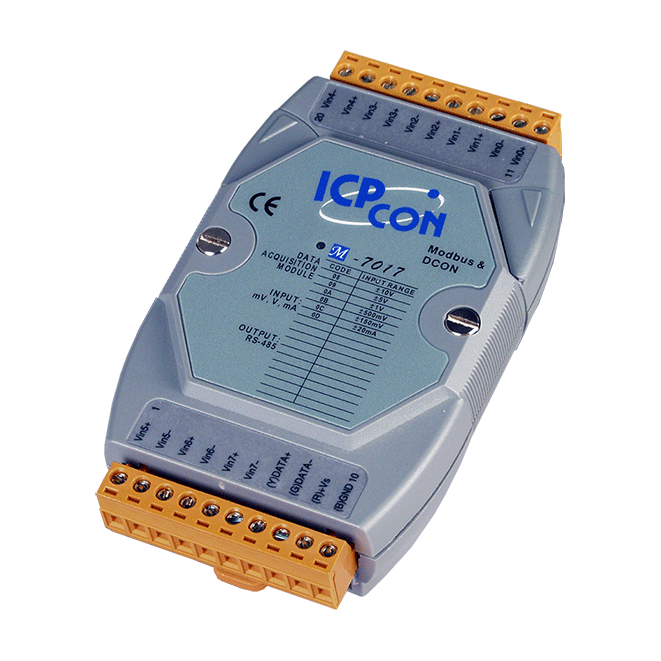

M-7017
8-ch Volt/mA Modbus Input Module |
Ismertető / Introduction
Az I-7017 sorozat 8 analog bemeneti csatornát kezel. Belsõ jumperrel állítható hogy 8 differenciál
vagy 6 diff. és 2 közös ponthoz képest konvertál. A bemenet lehet feszültség vagy áram (külsõ shönt
ellenállással!) A csatornák +-120V túlfeszültségre vannak méretezve, miközben a 3kV-os szigetelést biztosít
a rendszer a külsõ csatlakozási pontok felé (tápellátás, soros csatorna). Az I-7017F egység esetén a
konverziós sebesség a felbontás csökkenése mellett növelhetõ.
The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.
The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.
Rendelési Információ / Ordering Information
| Model | Leírás Description |
| I-7017 | 8-ch V/mA Input Module using DCON Protocol (Blue Cover) (RoHS) |
| I-7017F | 8-ch V/mA Input Module using DCON Protocol (Blue Cover) (RoHS) |
| M-7017 | 8-ch V/mA Input Module using DCON+Modbus Protocol (Blue Cover) (RoHS) |
Műszaki Adatok / Specifications
| Model | I-7017 | I-7017F | M-7017 |
| CPU Module | Watchdog Timer, Communication (Programmable) | ||
| Isolation | Intra-module Isolation, 3000 VDC | ||
| EMS protection | EFT (IEC 61000-4-4),±4 kV to Power Line | ||
| ESD (IEC 61000-4-2),±2 kV Contact for each Terminal | |||
| Surge (IEC 61000-4-5),±0.5 kV for Power Line | |||
| LED Indicators | Status, 1 x Power and Communication | ||
| Analog Input | |||
| Input Range | +/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA | ||
| Input Impedance | 20MOhm | ||
| Resolution | 16 bit | 16 bit / Fast: 12bit | 16 bit |
| Accuracy | ±0.1% | Fast mode:0,5% | ±0.1% |
| Sampling Rate | 10 Hz | 10 Hz Fast: 60Hz | 10 Hz |
| Overvoltage Protection | ±120V VDC | ||
| Individual Channel Configuration | No | ||
| Common Voltage Protection | ±15V VDC | ||
| COM Ports | |||
| Ports | 1 x RS-485 | ||
| Baud Rate | 1200 to 115200 bps | ||
| Data Format | (N, 8, 1) | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) | |
| Protocol | DCON | DCON + MODBUS | |
| POWER | |||
| Reverse Polarity Protection | |||
| Input Range | +10 ~ +30 VDC | ||
| Consumption | 1.3 W | ||
| Mechanical | |||
| Dimensions (mm) | 123 x 72 x 35 (W x L x H) | ||
| Installation | DIN-Rail | ||
| Environmental | |||
| Operating Temperature | -25 ~ +75 °C | ||
| Storage Temperature | -40 ~ +85 °C | ||
| Humidity | 10 ~ 95% RH, Non-condensing | ||
