A képek az ICPDAS tulajdonát képezik. Picures are property of ICPDAS.
-
-
I-7013 / I-7033 / M-7033
• 7013: 1 csatornás RTD távadó 1-channel RTD Input
• 7033: 3 csatornás RTD távadó 3-channel RTD Input
• 3/4 huzalos kialakítás a vezetékezés ellenállásának csökkentésére
Lead Resistance Elimination for 3/4-wire Connection
• Nyitott hurok jelzése / Open Wire Detection
• 3kV szigetelés / 3000 VDC Intra-module Isolation
• Kettős watchdog / Dual Watchdog
• Széles működési hőfoktartomány
Wide Operating Temperature Range: -25 to +75°C
Tulajdonságok / Features
|

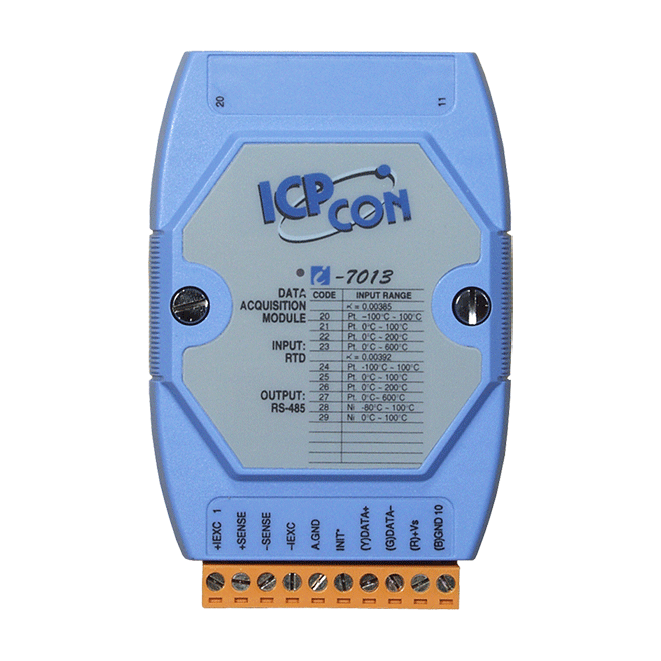

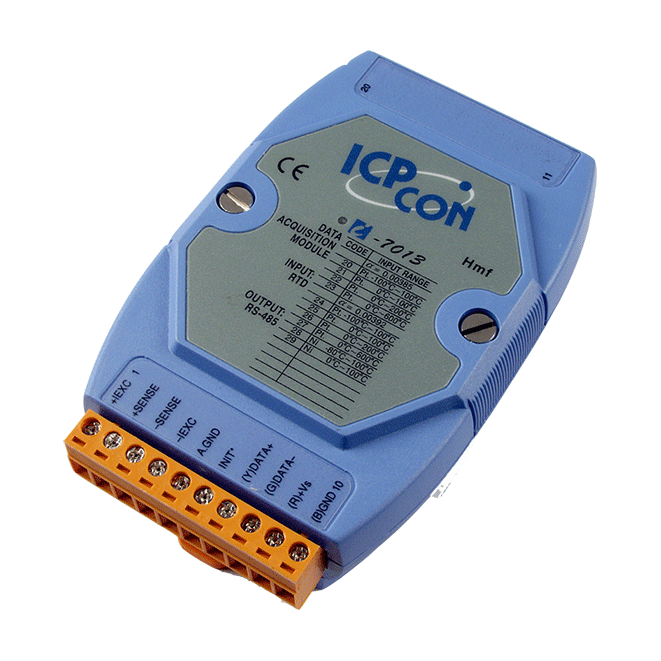

I-7013/M-7013
1-ch RTD Input Module |

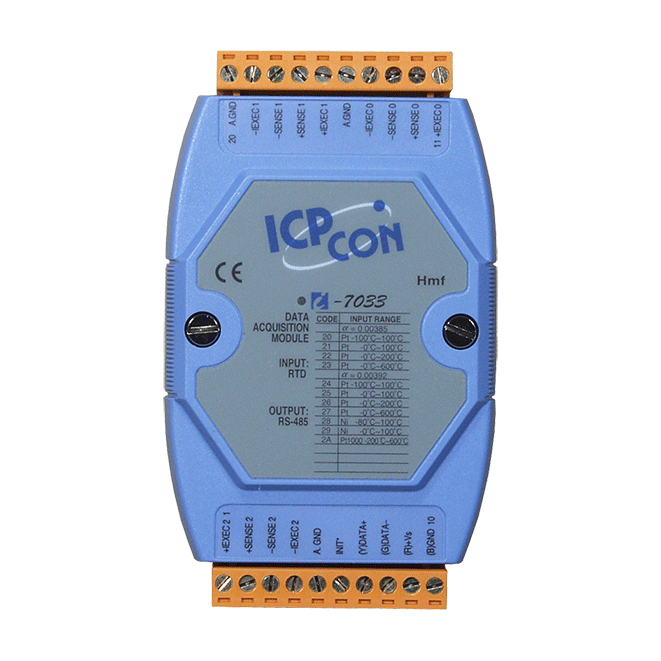

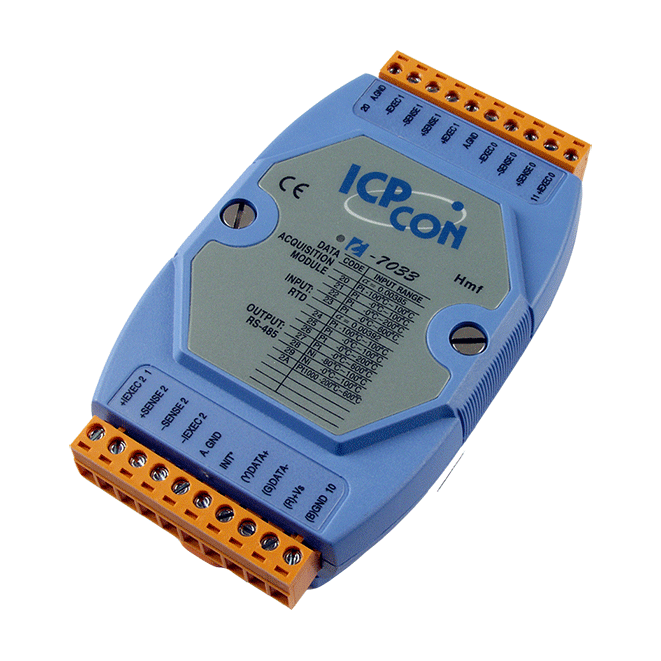

I-7033
3-ch RTD Input Module |

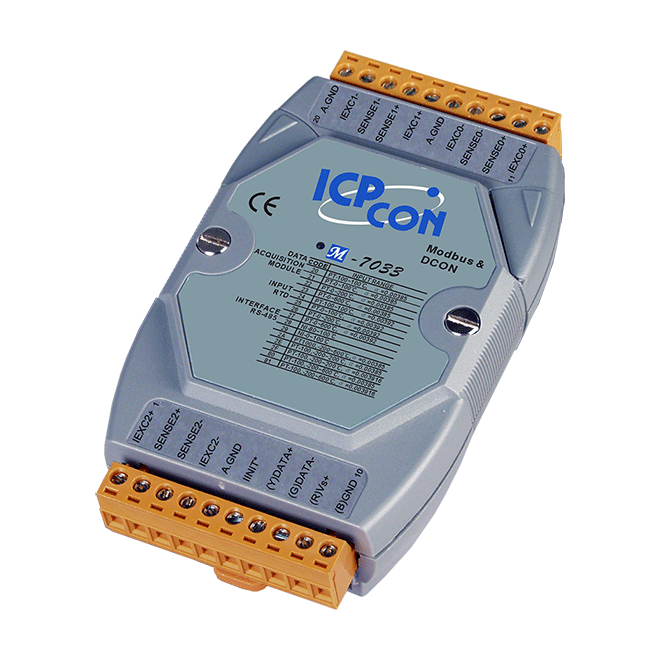

M-7033
3-ch RTD Modbus Input Module |
Ismertető / Introduction
Az ICPDAS I-7013/7033/M7033 moduljai 1 ill 3 csatornás RTD hőmérséglet mérő modulok. A jeladó Pt100-as Pt1000 illetve Ni120-asRTD modulok lehetnek.
A modul 2/3/4 huzalos bekötést támogat, mely a hosszú vezetékezés hatását van hivatva csökkenteni.
Az eszköz Modbus változata (M-7013) 1 csatornás digitális bemenettel és 2 csatornás digit kimenettel rendelkezik. A Modbus verzió támogaja a DCON és a Modbus RTU protokolt is.
The I-7013(D) and M-7013P(D) is a 1-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 type sensors. The module allows 2/3/4-wire RTD connections and features open wire detection. In addition, the I-7013(D) and M-7013P(D) also includes 3000 VDC intra-module isolation and supports lead resistance elimination for 3/4-wire connections. The M-7013P and M-7013PD added support for 1-channel digital input as 50 Hz event counter and 2-channel digital output as high/low alarm. The M-7013P and M-7013PD support both the Modbus RTU and DCON protocols, which can be configured via software.
The I-7013(D) and M-7013P(D) is a 1-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 type sensors. The module allows 2/3/4-wire RTD connections and features open wire detection. In addition, the I-7013(D) and M-7013P(D) also includes 3000 VDC intra-module isolation and supports lead resistance elimination for 3/4-wire connections. The M-7013P and M-7013PD added support for 1-channel digital input as 50 Hz event counter and 2-channel digital output as high/low alarm. The M-7013P and M-7013PD support both the Modbus RTU and DCON protocols, which can be configured via software.
Rendelési Információ / Ordering Information
| Model | Leírás Description |
| I-7013 | 1-ch RTD Input Module using DCON Protocol (Blue Cover) (RoHS) |
| I-7033 | 3-ch RTD Input Module using DCON Protocol (Blue Cover) (RoHS) |
| M-7033 | 3-ch RTD Input Module using DCON+Modbus Protocol (Blue Cover) (RoHS) |
Műszaki Adatok / Specifications
| Model | I-7013 | I-7033 | M-7033 |
| CPU Module | Watchdog Timer, Communication (Programmable) | ||
| Isolation | Intra-module Isolation, 3000 VDC | ||
| EMS protection | EFT (IEC 61000-4-4),±4 kV to Power Line | ||
| ESD (IEC 61000-4-2),±2 kV Contact for each Terminal | |||
| Surge (IEC 61000-4-5),±0.5 kV for Power Line | |||
| LED Indicators | Status, 1 x Power and Communication | ||
| Analog Input | |||
| Channel | 1 x RTD | 3 x RTD | 3 x RTD |
| Sensor type | Pt100, Pt1000, Ni120 | Pt100, Pt1000, Ni120 | Pt100, Pt1000, Ni120 |
| Resistance Measurement | 3.2 kΩ Max. | ||
| Resolution | 16 bit | ||
| Accuracy | ±0.05% | ||
| Sampling Rate | 10 Hz | ||
| Overvoltage Protection | ±5 VDC | ||
| Individual Channel Configuration | No | ||
| Open Wire Detection | Yes | ||
| 3-wire RTD Lead Resistance Elimination | Yes | ||
| COM Ports | |||
| Ports | 1 x RS-485 | ||
| Baud Rate | 1200 to 115200 bps | ||
| Data Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) | ||
| Protocol | DCON | DCON + MODBUS | |
| POWER | |||
| Reverse Polarity Protection | |||
| Input Range | +10 ~ +30 VDC | ||
| Consumption | 0.7 W | ||
| Mechanical | |||
| Dimensions (mm) | 123 x 72 x 35 (W x L x H) | ||
| Installation | DIN-Rail | ||
| Environmental | |||
| Operating Temperature | -25 ~ +75 °C | ||
| Storage Temperature | -40 ~ +85 °C | ||
| Humidity | 10 ~ 95% RH, Non-condensing | ||
