Product features：
- Compatible with the Intel® OpenVINO™ toolkit
- Onboard Intel® Core™ i Processor (Tiger Lake UP3)
- Compatible with Hailo-8™ M.2 AI Accelerator
- Support 2 x 260-pin DDR4 SO-DIMM sockets
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen3x4, USB 3.1 Gen2, and 2.5 GbE LAN
- Rich I/O: 4 x COM/ 3 x LAN/ 4 x USB3.1/ Remote PWR
- Support Triple-display (DVI-D/HDMI/DP)
- Wide Power Input: 9~36 VDC
- Power on/off delay control / configurable ignition power control
- Support DirectX 12
-
Műszaki adatok
-

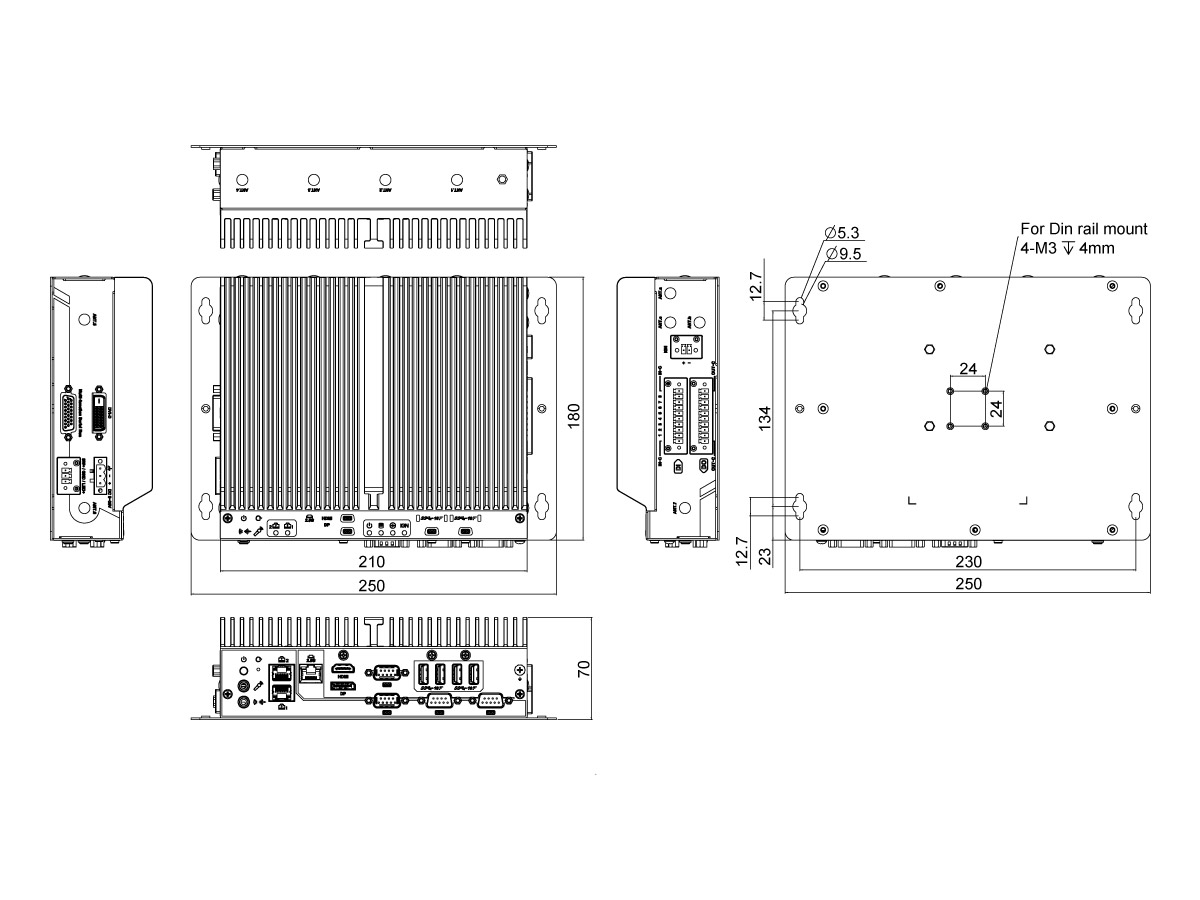

Méretek
-
Rendelési adatok
-
Specifications
SYSTEM CPU Soldered onboard Intel® i7/ i5/ i3 Processor (Default: i5 CPU Tiger Lake-U) AI Processor Hailo-8™ AI Processor, up to 26 Tera-Operations Per Second (TOPS)
with typical power consumption: 2.5W
*FPS of Hailo-8 is 2.5 times better than Orin Nano 4GBMemory 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB Chipset SoC Graphics Intel® Iris® Xe Graphics IO Interface LAN Chipset 2 x Intel® i211AT PCIe controller
1 x Intel® 225LM PCIe controller (iAMT support w/ i5/i7 skus)Watchdog Timer 1~255 levels reset Serial Port 2 x RS232 (DB-9 male connectors)
2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (RI/5V/12V)USB Port 4 x USB-A 3.2 Gen2 (2 w/ independent full speed)
1 x USB-A 2.0 onboard for encryption dongleLAN 2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af)
1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus)Video Port 1 x HDMI 2.0b, up to 3840x2160@60Hz
1 x DisplayPort 1.4, up to 3840x2160@60Hz
1 x DVI-D, up to 1920x1080@60HzAudio 1 x Mic-in & 1 x Line out EXPANSION Expansion Bus 1 x mPCIE (PCIe x1 + USB 2.0, Full Size) w/ 1 x nano SIM card slot
1 x M.2 B-Key 2242/3042/3052 (PCIe x2 + USB 3.0) w/ 2 x nano SIM card slots supporting 5G/LTE module
1 x M.2 E-Key 2230 (CNVi + USB 2.0) slot for WiFi /BT **Support CNVi modules only**Digital I/O 8 x DI, 8 x DO w/ 1.5KV isolation Multi-Serial Bus I22C/SPI/UART/GPIO (w/ 3.3 or 5V) via DB-15 Others 10 x antenna holes are reserved ENVIRONMENTAL Operating Temp. -20 ~ 60 °C (-4 ~ 140°F), ambient w/ air flow Storage Temp. -40 ~ 70°C (-40 ~ 158°F) Operating Humidity 10 ~ 95% @ 50°C (non-condensing) Vibration 5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 60068-2-64 Shock 40G peak acceleration (11 m sec. duration), operation w/ SSD
80G peak acceleration (11 m sec. duration), nonoperation w/ SSD
According to IEC 60068-2-27POWER requirement Power Input DC 9 ~ 36V (3-pin terminal block: V+, V-, GND) Max. Power Consumption 120W Remote Control 1 x 3-pin terminal block for remote control and PWR LED output Power Ignition IGN +/-
